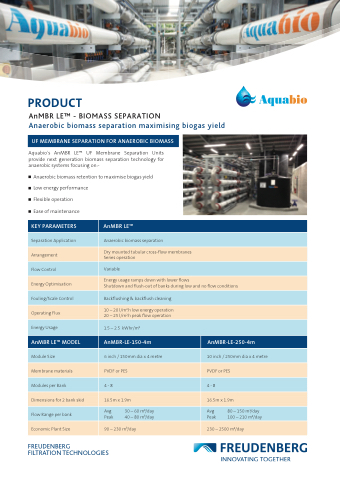

AnMBR LE Product Sheet

PRODUCT
AnMBR LETM - BIOMASS SEPARATION
Anaerobic biomass separation maximising biogas yield
UF MEMBRANE SEPARATION FOR ANAEROBIC BIOMASS
Aquabio’s AnMBR LETM UF Membrane Separation Units provide next generation biomass separation technology for anaerobic systems focusing on:-
I Anaerobic biomass retention to maximise biogas yield I Low energy performance
I Flexible operation
I Ease of maintenance
KEY PARAMETERS
AnMBR LETM
Separation Application
Anaerobic biomass separation
Arrangement
Dry mounted tubular cross-flow membranes Series operation
Flow Control
Variable
Energy Optimisation
Energy usage ramps down with lower flows
Shutdown and flush-out of banks during low and no flow conditions
Fouling/Scale Control
Backflushing & backflush cleaning
Operating Flux
10 – 20 l/m .h low energy operation
20 – 25 l/m .h peak flow operation
2
2
Energy Usage
1.5 – 2.5 kWhr/m3
AnMBR LETM MODEL
AnMBR-LE-150-4m
AnMBR-LE-250-4m
Module Size
6 inch / 150mm dia x 4 metre
10 inch / 250mm dia x 4 metre
Membrane materials
PVDF or PES
PVDF or PES
Modules per Bank
4 -8
4- 8
Dimensions for 2 bank skid
16.5m x 1.9m
16.5m x 1.9m
Flow Range per bank
Avg 30 – 60 m3/day Peak 40 – 80 m3/day
Avg 80 – 150 m3/day Peak 100 – 210 m3/day
Economic Plant Size
90 – 230 m3/day
230 – 2500 m3/day
