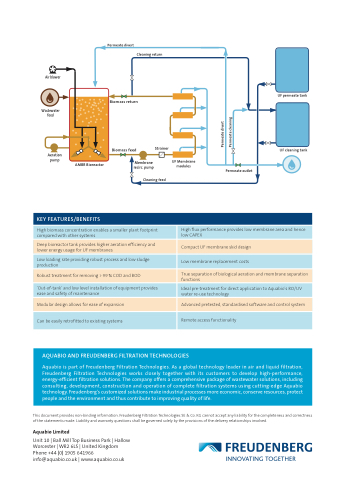

Page 2 - AMBR Technology Sheet

Permeate divert
Cleaning return
Air blower
Wastewater feed
Aeration pump
Biomass return
Biomass feed
Membrane recirc. pump
Cleaning feed
UF permeate tank
UF cleaning tank
Strainer
AMBR Bioreactor
UF Membrane modules
Permeate outlet
KEY FEATURES/BENEFITS
High biomass concentration enables a smaller plant footprint compared with other systems
Deep bioreactor tank provides higher aeration efficiency and lower energy usage for UF membranes
Low loading rate providing robust process and low sludge production
Robust treatment for removing > 99 % COD and BOD
‘Out-of-tank’ and low level installation of equipment provides ease and safety of maintenance
Modular design allows for ease of expansion Can be easily retrofitted to existing systems
High flux performance provides low membrane area and hence low CAPEX
Compact UF membrane skid design
Low membrane replacement costs
True separation of biological aeration and membrane separation functions
Ideal pre-treatment for direct application to Aquabio’s RO/UV water re-use technology
Advanced pretested, standardised software and control system Remote access functionality
AQUABIO AND FREUDENBERG FILTRATION TECHNOLOGIES
Aquabio is part of Freudenberg Filtration Technologies. As a global technology leader in air and liquid filtration, Freudenberg Filtration Technologies works closely together with its customers to develop high-performance, energy-efficient filtration solutions. The company offers a comprehensive package of wastewater solutions, including consulting, development, construction and operation of complete filtration systems using cutting-edge Aquabio technology. Freudenberg’s customized solutions make industrial processes more economic, conserve resources, protect people and the environment and thus contribute to improving quality of life.
This document provides non-binding information. Freudenberg Filtration Technologies SE & Co. KG cannot accept any liability for the completeness and correctness of the statements made. Liability and warranty questions shall be governed solely by the provisions of the delivery relationships involved.
Aquabio Limited
Unit 10 | Ball Mill Top Business Park | Hallow Worcester | WR2 6LS | United Kingdom Phone +44 (0) 1905 641966 info@aquabio.co.uk | www.aquabio.co.uk
