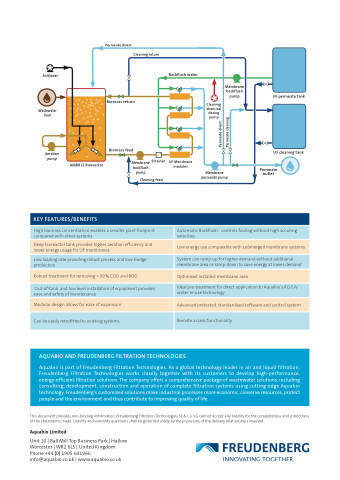

Page 2 - AMBR LE Technology Sheet

Permeate divert
Air blower
Wastewater feed
Aeration pump
Cleaning return
Biomass return
Biomass feed
Membrane Strainer backflush
pump
Cleaning feed
Backflush water
Membrane backflush pump
UF permeate tank
UF cleaning tank
Permeate outlet
Cleaning chemical dosing pump
AMBR LE Bioreactor
UF Membrane modules
Membrane permeate pump
KEY FEATURES/BENEFITS
High biomass concentration enables a smaller plant footprint compared with other systems
Deep bioreactor tank provides higher aeration efficiency and lower energy usage for UF membranes
Low loading rate providing robust process and low sludge production
Robust treatment for removing > 99 % COD and BOD
‘Out-of-tank’ and low level installation of equipment provides ease and safety of maintenance
Modular design allows for ease of expansion Can be easily retrofitted to existing systems
Automatic Backflush - controls fouling without high scouring velocities
Low energy use comparable with submerged membrane systems
System can ramp-up for higher demand without additional membrane area or ramp-down to save energy at lower demand
Optimised installed membrane area
Ideal pre-treatment for direct application to Aquabio’s RO/UV water re-use technology
Advanced pretested, standardised software and control system Remote access functionality
AQUABIO AND FREUDENBERG FILTRATION TECHNOLOGIES
Aquabio is part of Freudenberg Filtration Technologies. As a global technology leader in air and liquid filtration, Freudenberg Filtration Technologies works closely together with its customers to develop high-performance, energy-efficient filtration solutions. The company offers a comprehensive package of wastewater solutions, including consulting, development, construction and operation of complete filtration systems using cutting-edge Aquabio technology. Freudenberg’s customized solutions make industrial processes more economic, conserve resources, protect people and the environment and thus contribute to improving quality of life.
This document provides non-binding information. Freudenberg Filtration Technologies SE & Co. KG cannot accept any liability for the completeness and correctness of the statements made. Liability and warranty questions shall be governed solely by the provisions of the delivery relationships involved.
Aquabio Limited
Unit 10 | Ball Mill Top Business Park | Hallow Worcester | WR2 6LS | United Kingdom Phone +44 (0) 1905 641966 info@aquabio.co.uk | www.aquabio.co.uk
Permeate divert Permeate cleaning
