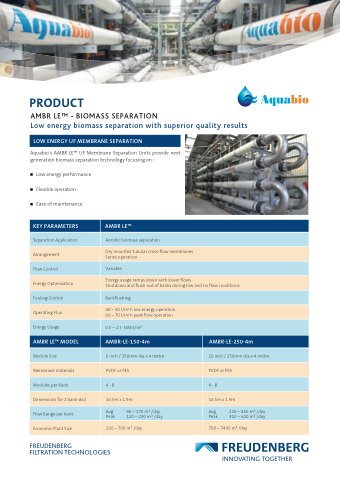

Page 1 - AMBR LE Product Sheet

PRODUCT
AMBR LETM - BIOMASS SEPARATION
Low energy biomass separation with superior quality results
LOW ENERGY UF MEMBRANE SEPARATION
Aquabio’s AMBR LETM UF Membrane Separation Units provide next generation biomass separation technology focusing on:-
I Low energy performance I Flexible operation
I Ease of maintenance
KEY PARAMETERS
AMBR LETM
Separation Application
Aerobic biomass separation
Arrangement
Dry mounted tubular cross-flow membranes Series operation
Flow Control
Variable
Energy Optimisation
Energy usage ramps down with lower flows
Shutdown and flush-out of banks during low and no flow conditions
Fouling Control
Backflushing
Operating Flux
40 – 50 l/m .h low energy operation
60 – 70 l/m .h peak flow operation
2
2
Energy Usage
0.5 – 1.5 kWhr/m3
AMBR LETM MODEL
AMBR-LE-150-4m
AMBR-LE-250-4m
Module Size
6 inch / 150mm dia x 4 metre
10 inch / 250mm dia x 4 metre
Membrane materials
PVDF or PES
PVDF or PES
Modules per Bank
4 -8
4- 8
Dimensions for 2 bank skid
16.5m x 1.9m
16.5m x 1.9m
Flow Range per bank
Avg 90 – 170 m3 /day Peak 120 – 230 m3 /day
Avg 230 – 460 m3 /day Peak 310 – 620 m3 /day
Economic Plant Size
260 – 700 m3 /day
700 – 7400 m3 /day
